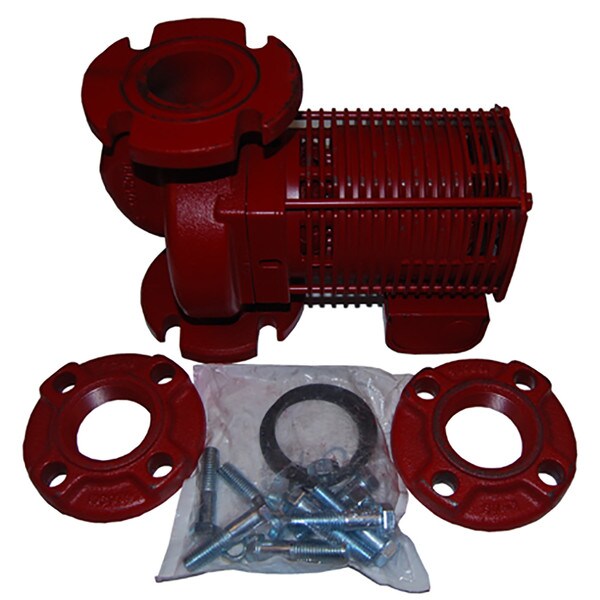

Armstrong Pumps E Series Single Phase Circulating Pump - 2/5 H.P. 4.7 Amp, 60 Hz., 120 Volt
E.2 Series circulators are designed for use in a wide range of hydronic applications, including:
• Hot & chilled water recirculation
• Domestic hot water generation
• Snow-melt installations
• Radiant heating systems
• Geothermal heat pumps
E.2 Series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components. New design elements include:
larger, stainless steel shaft
new sealed, permanently lubricated bearings
bellows-style mechanical seal with silicon carbide wear surfaces
new water slinger to protect motor against water intrusion.
Features:
• 60 HZ
• 4 Bolt flanges
• Includes flange gasket
• Silicon carbide EnviroSeal
• To be used with 2” flanges
• 30% Glass-filled Noryl impeller
• Stainless steel face plate and shaft
• For California Residents please see Prop 65 Warnings
• Hot & chilled water recirculation
• Domestic hot water generation
• Snow-melt installations
• Radiant heating systems
• Geothermal heat pumps
E.2 Series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components. New design elements include:
larger, stainless steel shaft
new sealed, permanently lubricated bearings
bellows-style mechanical seal with silicon carbide wear surfaces
new water slinger to protect motor against water intrusion.
Features:
• 60 HZ
• 4 Bolt flanges
• Includes flange gasket
• Silicon carbide EnviroSeal
• To be used with 2” flanges
• 30% Glass-filled Noryl impeller
• Stainless steel face plate and shaft
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 182212-645 |
| UPC | 672807409739 |
| Weight | 25.3 |
| Package Quantity | EACH |
| Amp | 4.7 |
| Flange to Flange (in) | 8-3/8 |
| Flange Y/N | Yes |
| H.P. | 2/5 |
| Length (ft) | 11 |
| RPM | 3350 |
| Volt | 120 |
