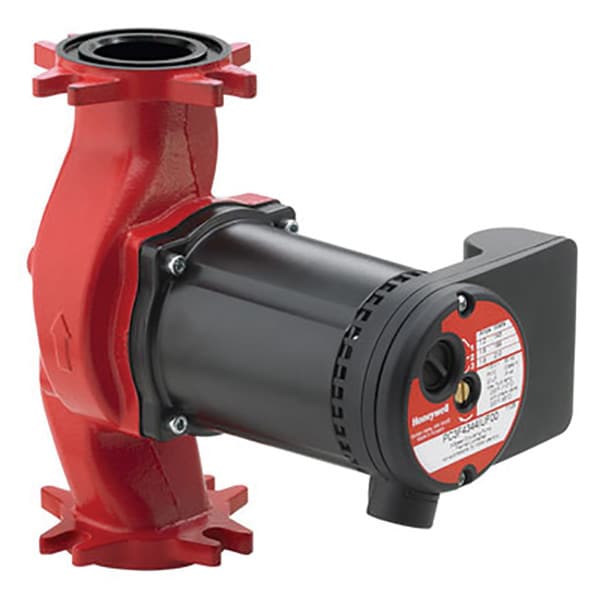

Honeywell Single Phase Circulating Pump
Honeywell Single Phase In Line Wet Rotor Circulating Pump.
• Universal flange
• 8-1/2” Flange to flange
• 145 psi Maximum water pressure
• 230° F (110° C) Maximum fluid temperature
• Three speed (manual selector) speed is set via rotary switch integrated in the terminal board
• Speed 1 pulls 1.24 amps and 145 watts, speed 2 pulls 1.6 amps and 190 watts and speed 3 pulls 1.8 amps and 210 watts
• The 3-speed in-line wet rotor circulator is designed for closed-loop hydronic heating and cooling systems
• For California Residents please see Prop 65 Warnings
• Universal flange
• 8-1/2” Flange to flange
• 145 psi Maximum water pressure
• 230° F (110° C) Maximum fluid temperature
• Three speed (manual selector) speed is set via rotary switch integrated in the terminal board
• Speed 1 pulls 1.24 amps and 145 watts, speed 2 pulls 1.6 amps and 190 watts and speed 3 pulls 1.8 amps and 210 watts
• The 3-speed in-line wet rotor circulator is designed for closed-loop hydronic heating and cooling systems
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | PC3F4344IUF00/U |
| UPC | 085267964579 |
| Weight | 15.1 |
| Package Quantity | EACH |
| GPM | 60.29 Maximum Flow Rate |
| Hz | 60 |
| Volt | 115 |
Details
Honeywell Single Phase In Line Wet Rotor Circulating Pump.
• Universal flange
• 8-1/2” Flange to flange
• 145 psi Maximum water pressure
• 230° F (110° C) Maximum fluid temperature
• Three speed (manual selector) speed is set via rotary switch integrated in the terminal board
• Speed 1 pulls 1.24 amps and 145 watts, speed 2 pulls 1.6 amps and 190 watts and speed 3 pulls 1.8 amps and 210 watts
• The 3-speed in-line wet rotor circulator is designed for closed-loop hydronic heating and cooling systems
• For California Residents please see Prop 65 Warnings
• Universal flange
• 8-1/2” Flange to flange
• 145 psi Maximum water pressure
• 230° F (110° C) Maximum fluid temperature
• Three speed (manual selector) speed is set via rotary switch integrated in the terminal board
• Speed 1 pulls 1.24 amps and 145 watts, speed 2 pulls 1.6 amps and 190 watts and speed 3 pulls 1.8 amps and 210 watts
• The 3-speed in-line wet rotor circulator is designed for closed-loop hydronic heating and cooling systems
• For California Residents please see Prop 65 Warnings
