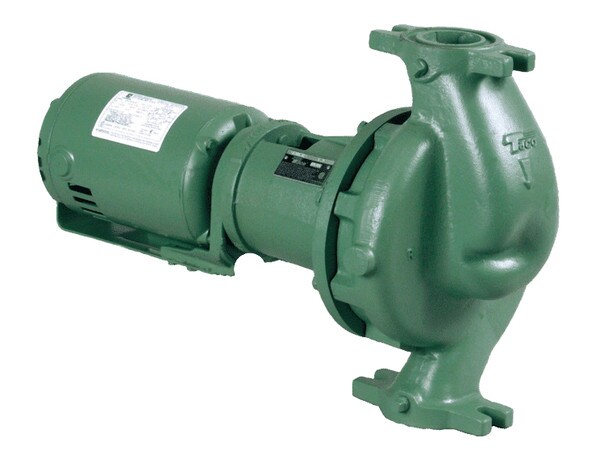

Taco 1600 Series Single Phase Circulating Pump - 1/2HP, 115/230V, 1PH, 1-1/2" Flanges
Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The cool-bearing cartridge design isolates it from the effects of system temperatures to greatly extend the bearing life.
• 115/230 Volt, 60 Hz and 1750 RPM’s
• Available in 15 models ranging in size from 1 - 1/2” X 1 - 1/2” to 2” X 2” with a flow range from 10 to 235 GPM and head capacities up to 68 feet with flanges
• Utilizes an exclusive replaceable, cooler running bearing cartridge design. This unique design isolates the bearings from the effects of system fluid temperatures which greatly extends bearing life. The cartridge design incorporates permanently sealed grease lubricated ball bearings making it virtually maintenance free
• Seal Kit TAC1600-868CRP
• Shaft Sleeve TAC1600-205RP-NT
• Bearing TAC1600-160RP
• Motor TAC133-119RP
• Freight charges apply
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 1612EAE10132096 |
| UPC | 687752386226 |
| Weight | 89 |
| Package Quantity | EACH |

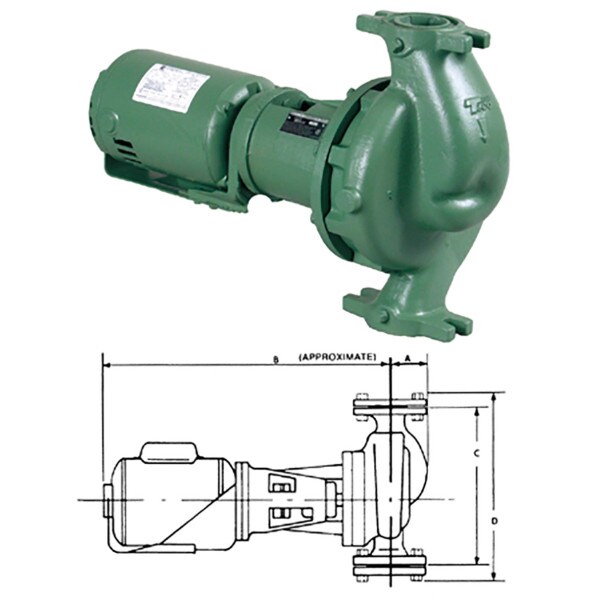

| A (in) | 3-1/8 |
| B (in) | 18-1/2 |
| C (in) | 13-1/2 |
| D (in) | 16-1/8 |
| Amp | 7 |
| H.P. | 1/2 |
| Flange Size (in) | 2 |
Details
Taco 1600 Series In-Line Pumps feature a replaceable, permanently-lubricated bearing cartridge. The cool-bearing cartridge design isolates it from the effects of system temperatures to greatly extend the bearing life.
• 115/230 Volt, 60 Hz and 1750 RPM’s
• Available in 15 models ranging in size from 1 - 1/2” X 1 - 1/2” to 2” X 2” with a flow range from 10 to 235 GPM and head capacities up to 68 feet with flanges
• Utilizes an exclusive replaceable, cooler running bearing cartridge design. This unique design isolates the bearings from the effects of system fluid temperatures which greatly extends bearing life. The cartridge design incorporates permanently sealed grease lubricated ball bearings making it virtually maintenance free
• Seal Kit TAC1600-868CRP
• Shaft Sleeve TAC1600-205RP-NT
• Bearing TAC1600-160RP
• Motor TAC133-119RP
• Freight charges apply
• For California Residents please see Prop 65 Warnings
